Frameless Glass Balustrades in Birmingham
Birmingham Glass Balustrades installs frameless glass balustrade systems across Birmingham and the wider West Midlands. Frameless means no vertical posts between the glass panels. The structural work is done at the base: a continuous channel or individual spigot clamps.
The result changes a space. A staircase guarded with frameless glass feels taller, lighter, and more considered. Light moves through unobstructed.
Call 0121 817 7749 to arrange a free site survey.
The Birmingham Market for Frameless Glass

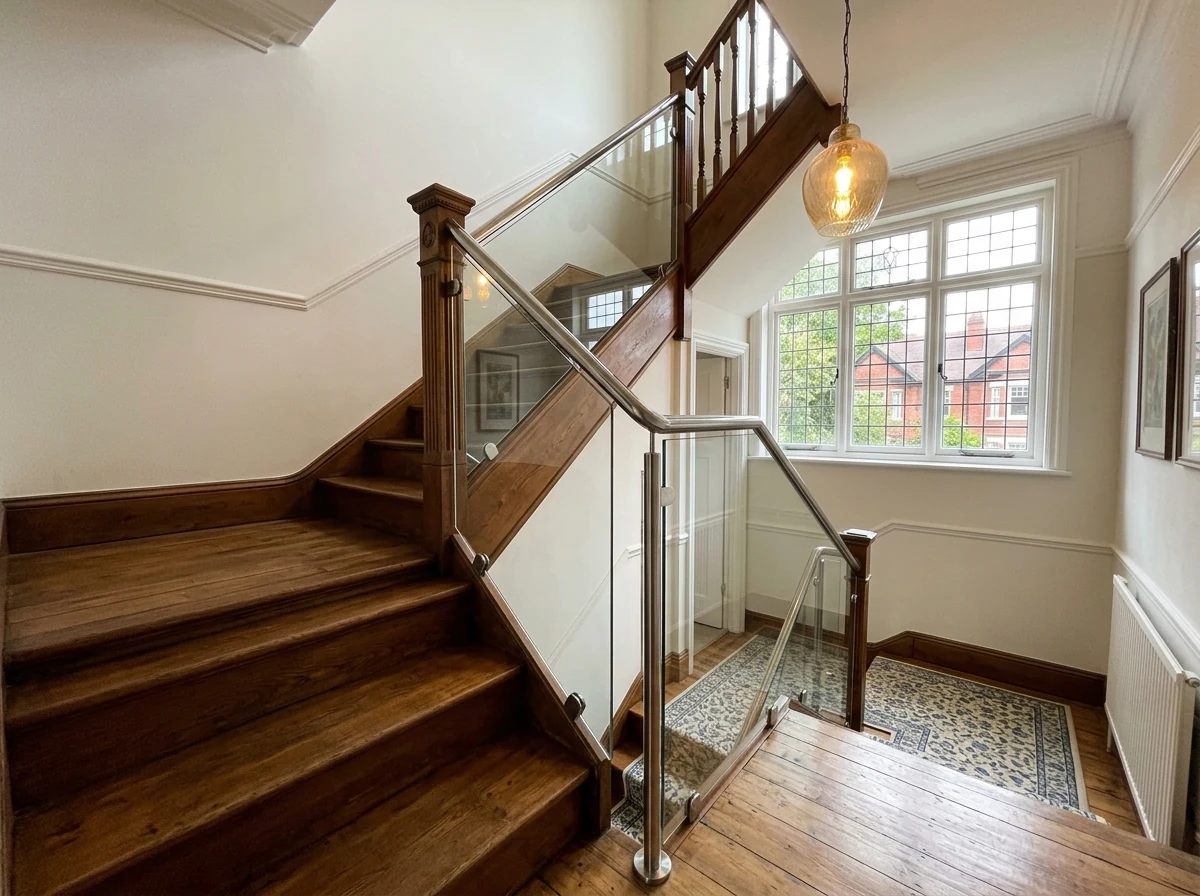

Frameless glass balustrades in Birmingham are driven by staircases, not coastline. The demand comes from loft conversions and rear extensions in Edgbaston, Sutton Coldfield, Harborne, and Moseley.
Edgbaston and Sutton Coldfield

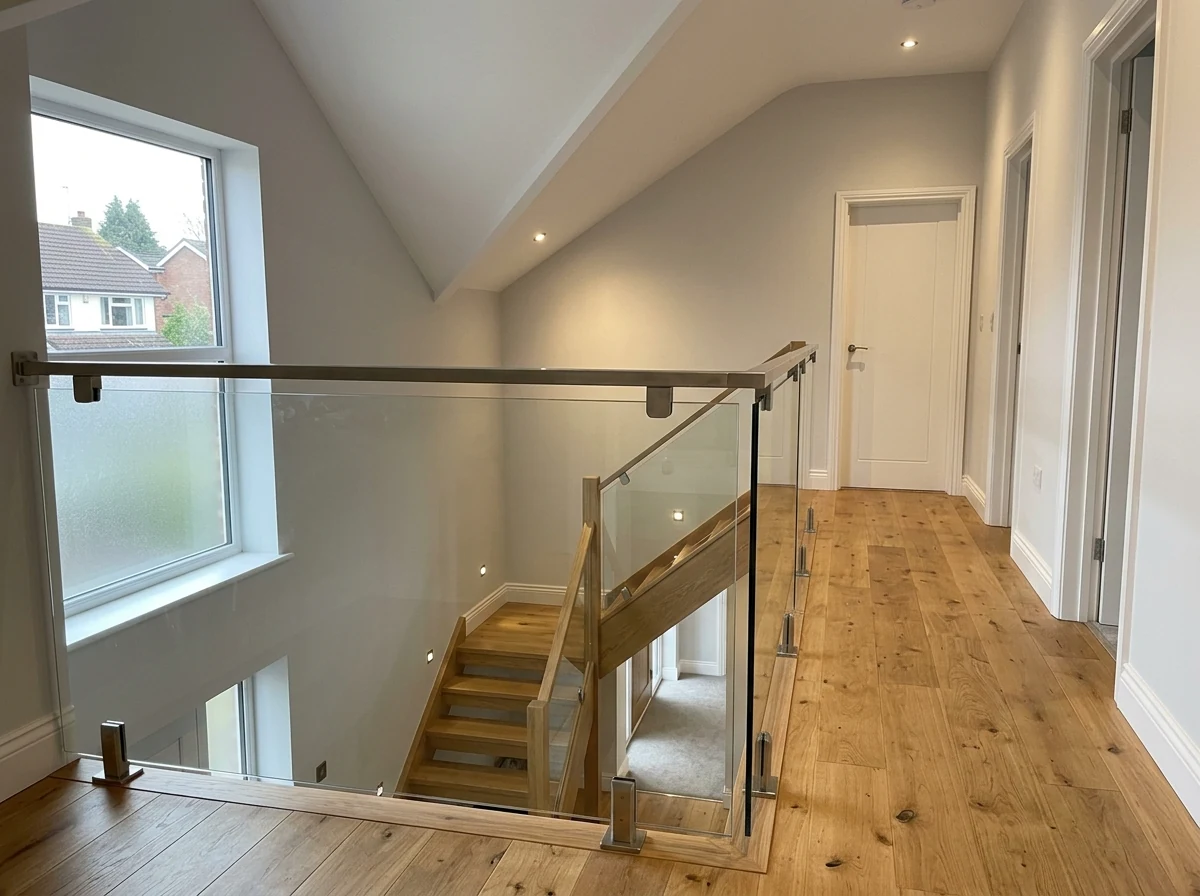

Edgbaston Victorian and Edwardian detacheds produce complex briefs where the staircase is a focal point. Sutton Coldfield’s larger family homes often have straight-flight staircases with no period character. Clean channel-fixed frameless with a stainless top rail is the natural choice.
Four Oaks Premium Installations
Four Oaks justifies full glass compositions: structural glass top rail, 21.5mm laminated panels, and precision-engineered handrail curves. See our glass panels for more details.
Commercial and Developer Projects
For larger commercial and developer projects, including office atriums, apartment conversions, and hotel mezzanines, see commercial glass balustrades in Birmingham.
The Two Frameless Systems
Channel-Fixed System
A structural aluminium or stainless steel channel is fixed continuously into the floor or stringer. Glass panels slot in and are secured with wedge packers or structural sealant. The channel supports the glass along its entire base edge.
Channel systems suit internal staircase installations and indoor applications. This is the most common choice for the Edgbaston and Sutton Coldfield renovation market.
Spigot-Mounted System

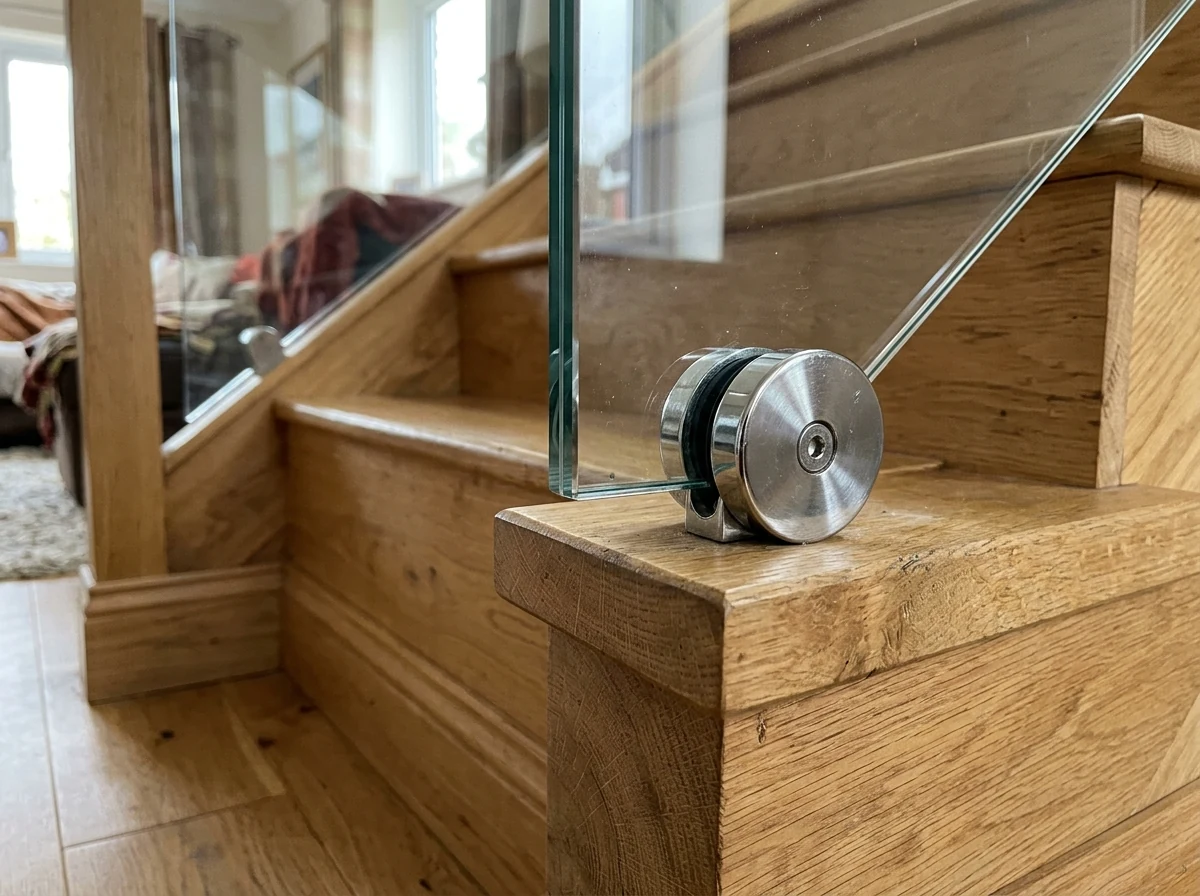

Individual stainless steel spigot clamps are fixed into the deck or floor at regular intervals. This approach handles complex geometries: curved runs, raking stair sections, and surfaces that cannot accommodate a continuous channel.
Spigot-mounted systems handle narrow stringers and suit the complex geometry of period staircases in Moseley and Harborne loft conversions. Also the standard choice for outdoor balcony installations.
Glass Specification
Channel-fixed systems use 21.5mm toughened laminated glass as standard. Two panes of 10mm toughened glass bonded with a 1.5mm interlayer. If one pane cracks, the interlayer holds both panes in position. This meets BS 6180 for structural barrier glazing.
Spigot Glass Options
Spigot-mounted systems use 15mm to 21.5mm toughened laminated depending on panel size and span. The specification is confirmed at survey based on your specific installation requirements.
Get My Free Quote
Speak to a frameless glass specialist today
Handrail Options for Frameless Glass
Stainless Steel Round Section
The most common pairing. A round stainless section is fixed to the top edge of the glass using polished stainless saddle clamps. Contemporary and maintenance-free.
Structural Glass Handrail
A length of toughened glass used as the handrail itself. This creates a fully glass composition and is the most dramatic option. Common in Four Oaks high-specification projects.
Wall-Fixed Handrail
Where the glass railing run is adjacent to a wall, a continuous stainless handrail can be wall-fixed rather than glass-mounted. Common on narrow staircase installations in Moseley and Harborne terraces.
Building Regulations Part K requires a handrail on all staircase guarding and at balconies and landings. On staircase flights, the handrail must sit between 900mm and 1,000mm above the pitch line.
Why Choose Frameless Glass?
Maximum Light
No vertical posts between panels. Light moves through the space unobstructed.
Structural Engineering
21.5mm toughened laminated glass carries the load from base to handrail.
Full Compliance
BS 6180, Part K, and specification documentation for Building Control.
Precision Survey
Every panel is laser-measured and fabricated to your exact staircase dimensions.
